IS Battery Demountable:No
Model Number:ET120M
Real Time Sampling Rate:250MSa/s
Band Width:120MHz
Digital Channels:1
DIY Supplies:ELECTRICAL
Origin:Mainland China
Storage:2500 DSO waveforms
Auto zero reference:During DC meosurement
Trigger slope:Rising / Falling
Battery:18650 lithium battery
Vertical resolution:8 bits
Scan mode:Auto/Single/Normal
Record length:12div
Features:
-
120MHz
analog bandwidth and
500MS/s
sampling rate oscilloscope with 2.4 inches 320 * 240 clear color screen
-
Square wave signal output: 1kHz,10KHz,100KHz,1MHz 4 speeds of square wave signal output
-
12 kinds of parameter measurement
: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-.
- Waveform Parameters Adjustable：time base, amplitude, trigger slope and vertical sensitivity can be setting
- Three scan modes: auto, normal and single. Can store 2500 DSO waveforms, support thumbnail browsing.
- Compact and portable appearance, with silicone protective cover ,strong and durable, built-in rechargeable lithium battery, can be used continuously for 6 hours,suitable for outdoor working
Specification:
Display: 320x240 LCD screen
Display area: 50mm x 40mm
Backlight: White, brightness adjustable
Impedance: x1: 1MΩ / x10: 10MΩ
Battery: 18650 lithium battery
Auto shutdown: No operation for 15 minutes
Storage: 2500 DSO waveforms
Size: 124 X 80 X 35mm
Use conditions: 0C~ +40℃;
Storoge conditions: -10C~ +60℃;
Analog bandwidth: 120MHz
Maximum real-time sampling rate： 500MSps
Vertical resolution: 8 bits
Vertical accuracy: ±(5%+ 0.2div)
Auto zero reference: During DC meosurement
Trigger level: ±3.8div (0. 1div per step)
Trigger position: ± 6div (0. 1div per step)
Cursor function: △V, △t, 1 / △t
Nonlinearity： ±1 bits
Coupling method：DC/AC
DivisionVerical: ±3.8 Horizontal:12
Time base range：6ns/div ~ 50s/div
Time base accuracy：±(0.01%+0.1div)
Scan mode：Auto/Single/Normal
Trigger slope：Rising / Falling
Record length：12div
Auto configuration：Automatically set time base and vertical amplitude
Aulomatic measurement function：Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Vertical sensifvity range：x1: 50mV/div ~ 10V/div ; x 10: 500mV/div ~ 100V/div

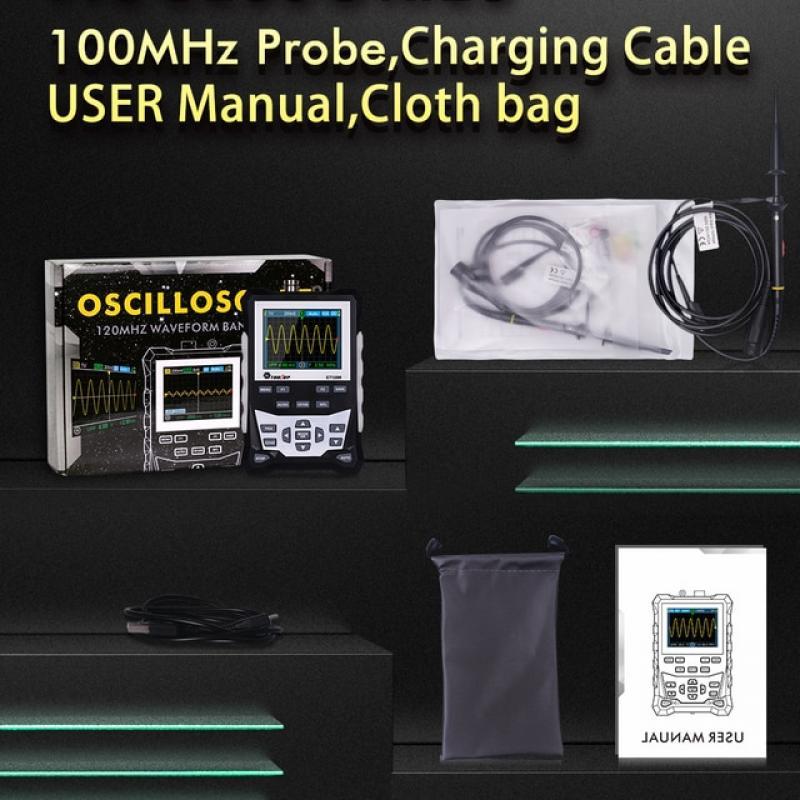

Package list:
1 x Oscilloscope
1 x Probe
1 x English Manual
1 x USB Cable
Detail Pictures:
