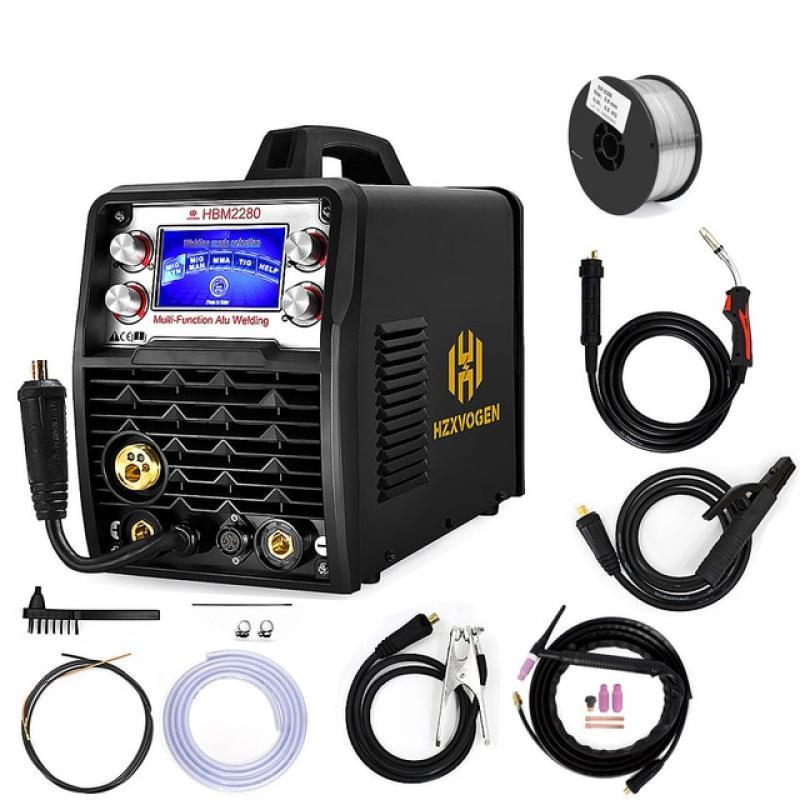

Plug Type:EU plug Is Smart Device:no Usage:Mig / TIG / ARC Welder Weight:17KG Dimensions:425*183*290mm Wire Feeding Speed:3-18mm Model Number:HBM2280 Certification:CE Origin:Mainland China Rated input power (KW):MIG: 5.7 TIG: 4.37 MMA: 6.3 Rated input current:MIG: 36.0; TIG: 28.1; MMA: 40.5 Rated input apparent power (KVA):MIG: 7.8; TIG: 6.21; MMA: 8.9 Welding current adjust range (A):10 ~ 240 Welding voltage adjust range (V):10 ~ 26.8 Duty cycle (40℃ 10min):60%, 200A; 100% 155A No load voltage (V):50V (adjustable Power factor:MIG: 0.73; TIG: 0.70; MMA: 0.71 Efficiency(%):85% Protection class:IP23 Insulation class:F Welder Wire:Aluminum,Solid,Flux Core Welding Special Features 1:VRD Special Features 2:IGBT Special Features 3:Aluminium Welding Special Features 4:Synergic Special Features 5:Smart Chips Usage 1:iron sheet Usage 2:stainless steel Usage 3:carbon steel Usage 4:Ideal for welding aluminium sheet HZXVOGEN MIG Semi-Automatic Argon welding machine 5 in 1 Tig mig Machine Inverter Aluminum Welder HBM2280 welding wire 5 kg 1kg Update Feature 1.The most advanced multifunctional welder and is easy and convenient to usd - just need 3 steps: 1.chose the welding mode . 2. chose material .3.chose workpiece thicness you need .It will show all the parameters clearly 2.Can weld Aluminum - This welder can weld aluminum, iron, carbon steel, stainless steel, etc. MIG synergistic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds, and Lift TIG welds. Dynamic control-set arc control to crisp or soft depending on your preference and application. 3.MIG function - MIX GAS can use 0.6/ 0.8/ 0.9/ 1.0mm flux wire. When using 0.6/ 0.8/ 0.9mm wire, it can weld 0.7 ~ 3.4mm thickness. When using 1.0mm wire, it can weld 1.2 ~ 6.4mm thickness. GAS (CO2) can use 0.8/ 1.0mm wire. When using 0.8mm wire, it can weld 0.9 ~ 4.8mm thickness, when using 1.0mm wire, it can weld 1.2 ~ 6.4mm thickness 4.TIG function - Can use 1.6mm and 2.4mm tungsten.When using 1.6mm tungsten can weld 0.7 ~ 4.8 thickness, using 2.4mm tungsten can weld 1.2 ~ 6.4mm thickness 5.MMA function - Current 10 ~ 170 amp. Can weld 2.5/ 3.2/4.0mm electrode. Using 2.5/ 3.2mm rods, can weld 1.6 ~3.4mm thickness. Using 4.0mm rods, can weld 3.4mm ~ 8.0mm thickness 6.HBM2280 220V 200 Amp MIG/Stick/TIG Multi-Process Welder 7.The IGBT inverter technology provides high power in a light, compact unit .it's designed for for hardware, decoration, car modification, equipment and factory maintenance .This units are capable of performing MIG (can weld aluminum) ARC and LIFT TIG. 8.Advanced IGBT - Maximize durability to overloads, improve work efficiency, longer service time and improve stability. Adopt copper amorphous transformer - High frequency transformer with strong conductivity can save energy, resist to high temperature, provide long working hours and lower loss. 9.With user manual in English ,Russian, Spanish, French Specifications: Brand name: HITBOX Model: HBM2280 Inverter technology: IGBT Rated input power (KW) - MIG: 5.7; TIG: 4.37; MMA: 6.3 Rated input current (A) - MIG: 36.0; TIG: 28.1; MMA: 40.5 Rated input apparent power (KVA) - MIG: 7.8; TIG: 6.21; MMA: 8.9 Welding current adjust range (A) - 10 ~ 200 Welding voltage adjust range (V) - 10 ~ 26 Duty cycle (40℃ 10min) - 25%, 200A; 60%, 150A; 100% 130A No load voltage (V) - 50V (adjustable) Power factor - MIG: 0.73; TIG: 0.70; MMA: 0.71 Efficiency(%) - ≥80% Protection class - IP23 Insulation class - F Package includes: Package Content :(NO Tig Torch) 1X Mig Welder HBM2280 1X MB24 Mig torch 1X 300A Electrode holder 1X 200AEarth clamp 1X Gas tube 1X Pack of tips and nozzles 1X Manual Package Content :(With Tig Torch) 1X Mig Welder HBM2280 1X MB24 Mig torch 1X WP26V Tig Torch 1X 300A Electrode holder 1X 200AEarth clamp 1X Gas tube 1X Pack of tips and nozzles 1X Manual Pacakge Content: (With Stainless wire) 1X Mig Welder HBM2280 1X MB24 Mig torch 1X WP26V Tig Torch 1X 300A Electrode holder 1X 200AEarth clamp 1X Gas tube 1X Pack of tips and nozzles 1x 1.0kg Stainless Steel wire 1X Manual
