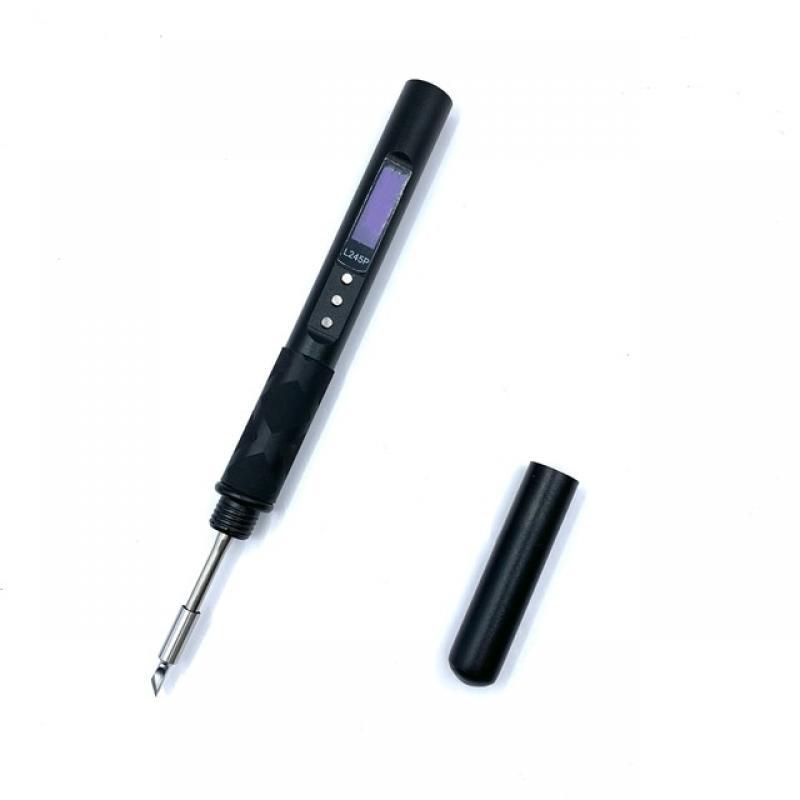

L245P PD 65W DC 90-150W Soldering Pen Portable Electric Soldering Iron Aluminum Alloy CNC Shell Supports QC PD Compatible JBC245
Description:
Update to L245P in May of 2023, add the DC power port, add the metal cap for the tip, easy to carry. Support PD3.0,PD 2.0, QC 3.0, QC 2.0, or DC9-24V 3.5*1.35mm DC power supply.
Feature:
1. Fast Heating:It is compatible with QC, PD and other fast charging protocols, and supports DC power supply. If the default L245 heating element is used, the maximum power can reach 65W. The default L245 heating core is customized, with very good heating/temperature recovery efficiency and large heat capacity. Solder joints of all sizes are easy to melt.
2. OLED Screen Can Display Rich Contents:Temperature gear, set temperature, voltage, internal temperature, actual temperature of heating element, heating power and power percentage. Under the condition of ensuring the same power, the working mode of large voltage and small current is adopted to reduce the dependence on C-type line, without the support of emark chip.
3. Multi Functions:Automatic standby, vibration wake-up, automatic shutdown, time, temperature, parameter setting and calibration. Support Chinese and English switching. You can quickly set and adjust the temperature with only 3 keys. The decoy voltage can be set directly in the menu (it can be set automatically according to the parameters of the charging head).
4. Material and Application:This product is made of aluminum alloy by numerical control processing and sandblasting and anodizing processes. Customized L245 heating element, heating and temperature return speed is very fast! It is not only sturdy, but also feels very good. It is an indispensable good tool for electronic maintenance, electronic DIY, etc!
5. Supports preset temperature of multiple gears for quick temperature adjustment:
Press the middle key, open "ch on", the machine will quickly adjust the temperature according to the preset temperature, which is very efficient and convenient.
Specifications:
Power: 65W (using the default L245 heating core)
Temperature control range: 0-480 degrees
Heating core: L245 (customized);
Compatible with JBC245 (DC mode is required, and the machine can only be started when the voltage is greater than 20V)
Power interface: TYPE-C/DC3.5*1.35
Fast charging protocol: QC/PD
Power supply range: 9-24V
Internal resistance of L245 heating core: 6.5 Ω
Length: About 190mm
Weight：About 150g
How to use：
1. For fast temperature adjustment: press the middle key to select CH: ON to open step adjustment, press the left and right keys to quickly call the five component step pre stored temperature according to the preset step temperature
2. For normal temperature regulation: Press the middle key to select CH: OFF to turn off hierarchical regulation, press the left key to reduce the temperature according to the set temperature step, and press the right key to increase the temperature to adjust the temperature.
3. Press and hold the middle key for more than 3 seconds to enter the menu setting, and you can adjust each item according to the menu description. After entering the lower menu, long press for 3 seconds to return to the upper menu.
Note:
The size of the DC jack is 3.5*1.35 instead of the more common 5525 or 5521.
Package included:
1 x L245P soldering iron(Black or Silvery or Blue)
1 x 3.2k Soldering Tip
