Application:400*200mm
Model Number:SMT550
Origin:Mainland China
Certification:CE
Guide rail:TBI Linear Guide rail
Number of feeders:50
MAX PCB Area:400*290mm
Driving mode:TBI ball screw
Motor:Servo motor
Software Version:English
Warranty:1 Year
Stock:YES
Electric feeder:Support
Mounting accuracy range:0201-40*40mm,Pin spacing 0.3mm chip
Manufacturer:YES
Max mounting rate:9500CPH
Introduction

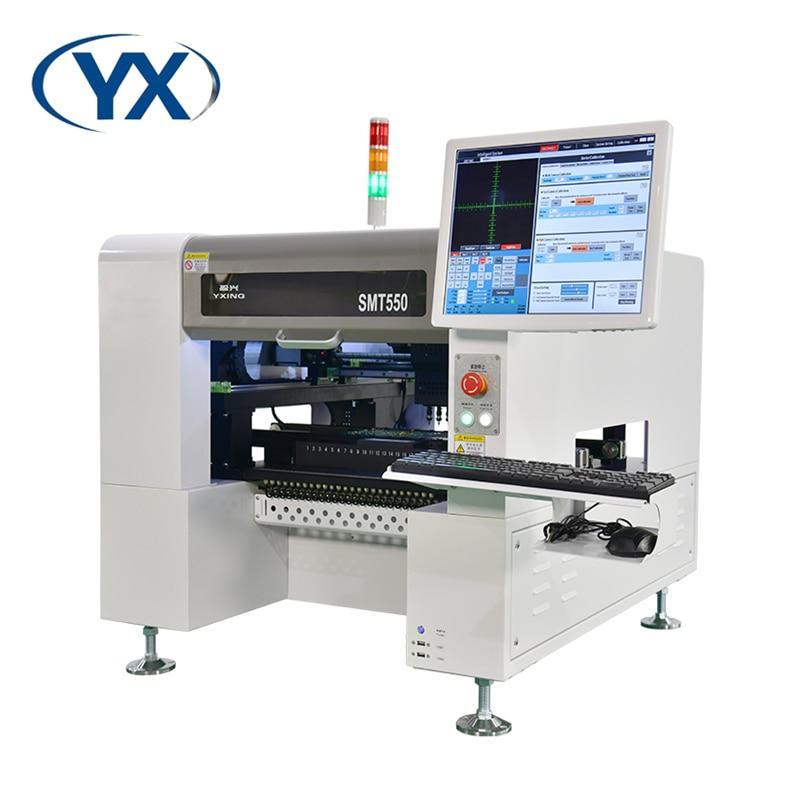

The machine SMT550 with the ball screw and servo motor which is more stable and more accurate than the step motor.
Feature
1.Imported servo motor from Japan.
2.Straight guide rail.
3.Screw Guide.
4.4 Heads+50 feeders+6 cameras.
Part list
1.Pick and place machine:1Set
2.IC fixed support:4Set(four M5*8,four M5*16)
3.JUKI nozzle:12Pcs (502*2,503*3,504*4,505*2,506*1)
4.Calibration suction nozzle:4Pcs
5.Power wire:1Pcs
6.Fixed foot:4Pcs(Diameter 20mm)
7.The keyboard and mouse:1Set
8.Nozzle calibration inkpad:1Box
9.lubricant:1Pcs
10.Chassis key:1Pcs
11.PC:1Set
12.17 inch liquid crystal display:1Set
The SMT550 software was developed by ourselves.
The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT550 machine has one year warranty, lifetime maintenance.
We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).
