Origin:Mainland China
Certification:CE
Input:100-240V~ 50/60Hz 4A Max
Output:100-240V~ 50/60Hz 2A/Gang 4A/Total
LED Load:150W/110V/Gang, 300W/110V/Total, 300W/220V/Gang, 600W/220V/Total
Wi-Fi:IEEE 802.11 b/g/n 2.4GHz
Bluetooth Standard:4.2 BLE
TFT Screen Size:3.5 (Capacitive Touch Panel)
Screen Resolution:480x320px
APP Operating Systems:Android & iOS
Shell Materials:PC V0 and CRS and Toughened Glass
Dimension:NSPanel-EU: 86x86x41.7mm, NSPanel-US: 120
Support Dropshipping:Support Wholesale
Support Fast shipping:Support Retail
SONOFF NSPanel Pro Smart Home Control Panel Smart Scene Wall Switch EU/ US Smart Home Thermostat Display Switch Woks with Alexa
SONOFF NSPanel Pro Smart Home Control Panel Smart Scene Wall Switch EU/ US Smart Home Thermostat Display Switch Woks with Alexa
SONOFF NSPanel Pro is a smart home control panel. Your smart lights, switches, heaters, coollers, curtains, and all your smart devices can be controlled. An unlimited number of control devices, all in one panel.
NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Support all SONOFF Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.
NSPanel Pro can be used as a display, supports adding the following four types of cameras for live monitoring. Viewing the real-time monitoring of living room, garage, bedroom, etc on the panel at any time.
Power Consumption Graph, Customize Wallpaper, and Call Intercom...It will update more features and support HA, Matter in the future. NSPanel Pro will be your wonderful choice.
Better Performance to Meet Your Needs
All in One Panel
Unlimited number of control devices, supports control all SONOFF devices, from smart lights, smart cameras, security to switches, etc.,and will continue to support SONOFF new device in the future.
One-click to Enable Smart Scenes
Use with different smart devices, switch scenes at home with one click
Not Only Smart Panel, But Zigbee Hub
Quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Added sub-devices can be voice controlled by working with Alexa, Google Home,and more.
Customize Your Home Security Mode
Customize 3 modes by setting different arming devices. After arming, once the sensor is triggered, the panel will alarm, and you will receive a notification alert on the phone.
View Real-time Monitoring on Panel
NSPanel Pro can be used as a display, supports adding the following four types of cameras for live monitoring. You can view the real-time monitoring of living room, garage, bedroom,etc on the panel at any time.
Remote Talk by Camera
Used with a smat camera, when someone comes to visit, check the situation through the camera first to confirm safety. It also supports two-way talk to make communication easier.
Call Intercom, More Convenient Communication
With built-in microphone and speaker, it support using mobile phone to call panel and panel-to-panel calls.
Smart Temperature Control, Make Life Easier
Choose the temperature source and execution devices to form your own thermostat. Keep a suitable room temperature for you.
Compatible with Home Assistant
Support two-way sync between NSPanel Pro and Home Assistant devices, you can sync Zigbee sub-devices from NSPanel Pro to HA, as well as sync lights and switches on HA to NSPanel Pro.
Explore Richer Functions in Wedpages
Listening to music, watching videos, or checking out the latest advice? Save the address in NSPanel Pro's Webpages, start it quickly with one click, and relax at any time.
Accompany You in Daily Life
Check Power Consumption at Any Time
You can check the power consumption on the panel at any time. Smart panel to check power consumption helps you live an eco-friendly life.

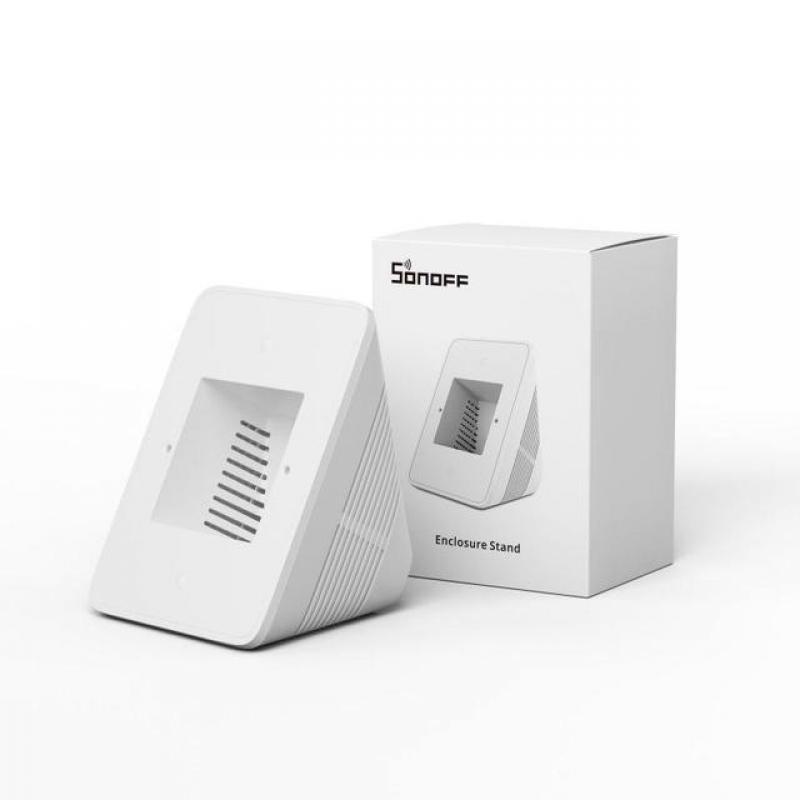

Compatible with Enclosure Stand
