Model Number:R7C.716
Wattage:AC100~240V; 50/60Hz
Origin:Mainland China
Certification:CE,RoHS
Tuya Smart Wifi Thermostat Electric Floor Heating Porgrammable Termostato Digital Warm Underfloor Temperature Control For Google Home Alexa 16A 220V
R7C Colorful Screen WIFI Intelligent digital underfloor heating temperature controller is a floor heating system suitable for room temperature control and household temperature control.
It controls the operating state of the floor heating equipment by comparing the ambient temperature with the set temperature, which improves comfort and achieves energy saving.
Control Electric Floor Heating System/Warm floor system
Porduct Hightlight
App Remote Control
Using your smartphone or tablet remotely control the smart wifi thermostat by free app Smart Life or TuyaSmart from anywhere at anytime.
Voice Control
The smart wifi thermostat is perfect compatible with Amazon Alexa, Google Home, . Just simply give a voice command to your Alexa or Google Home Assistant to control your devices when you are on go.
Manual/ Auto Mode
Free to choose manual mode or auto mode for different purposes.
Two temperature display
Celsius and Fahrenheit.
Weekly Programmable
The thermostat supports different temperature setting accordingly with 6 time-modes daily.7 Days programmable
Memory Function
No need to worry about power failure, data memory when power is off.
Children Lock
Keypad locking function is designed to prevent children from operating by mistake.
Application
Suitable for electric floor heating/water heating system.Perfect for home, office, shopping mall, hotel, etc
Multi-language
Thermostat can display English, Italian, Russian.
WIFI Control
Works with Tuya Smart and Smart Life App. Just turn on Bluetooth for a quick connection. No matter where you are, you can control the temperature at any time.
Smart WiFi Thermostat Voice Control
Supports voice control through Google Assistant and Amazon Alexa
Weather And Humidity Display
Synchronization of humidity and weather in your city when connected to wifi.
Technical Specifications
Supply voltage :AC100~240V; 50/60Hz
Current Load: 3A and 16A (Option)
Power consumption :1W Max (Wi-Fi 3W Max)
Temp. setting range :5~95℃（41~99℉）
Floor limited range :20~90℃（68~99℉）
Temp. Dif:0.5~10℃（1~10℉）, Factory setting ±1℃
Ambient temperature :-5~50℃（23~99℉）
Protection level :IP20
Shell material:Anti-Flammable PC
Sensor:
16A model thermostat including floor sensor
3A model thermostat without floor sensor
TIPS：
1.R7C.716(16A) is used control Heating Cable/Heating Mat/Heating Flim etc. electric floor/underfloor heating system.
2.R7C.703 (3A) is used control Valves/Normally Closed Actuators/Normally Opend Actuators etc. water floor/underfloor heating system.
3.R7C.723 (3A) is uesd to control gas boiler, elcetric boiler or heat pump which are connected via "Dry Connect" !
4.The package of R7C.703/R7C.723 Don't have external floor sensor;
R7C.716 have external floor sensor.

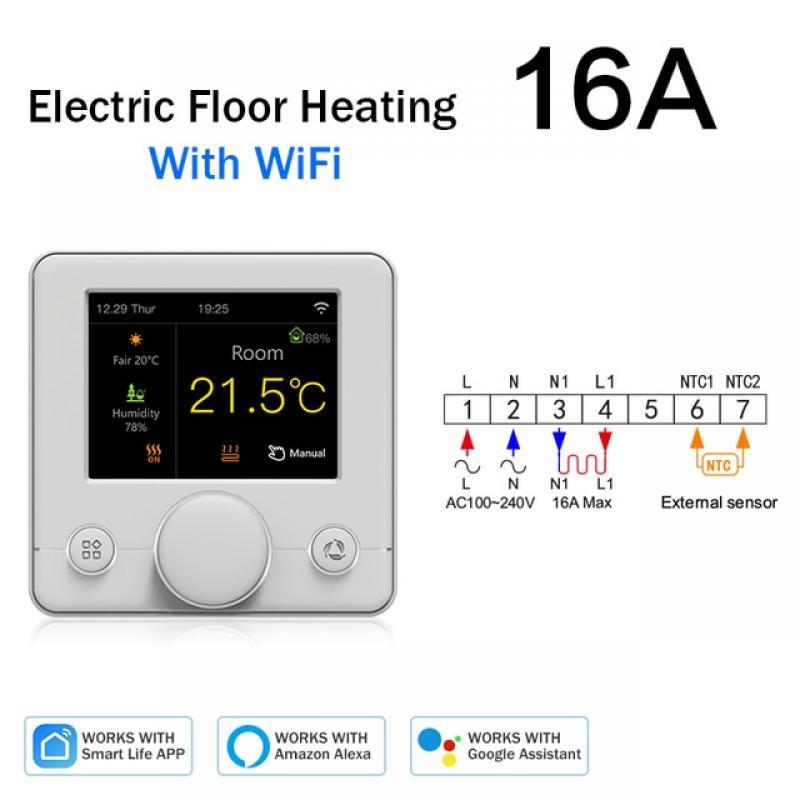

WiFi Thermostat Underfloor Heating Termostato Wiring Disgram
The Model :R7C.716
16A Electric Floor Heating Thermostat WiFi
Smart Wifi Warm Floor Heating Temperature Controller Package List
16A thermostat: With 3Meter floor sensor
