Detection Angle:120°
Detection Range:7-10M
Model Number:Human presence sensor
Origin:Mainland China
Certification:CE,FCC,RoHS
Main Features:
1.Functional Wifi/ZigBee Smart Human Presence Sensor
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.
3.Two Models Are Available

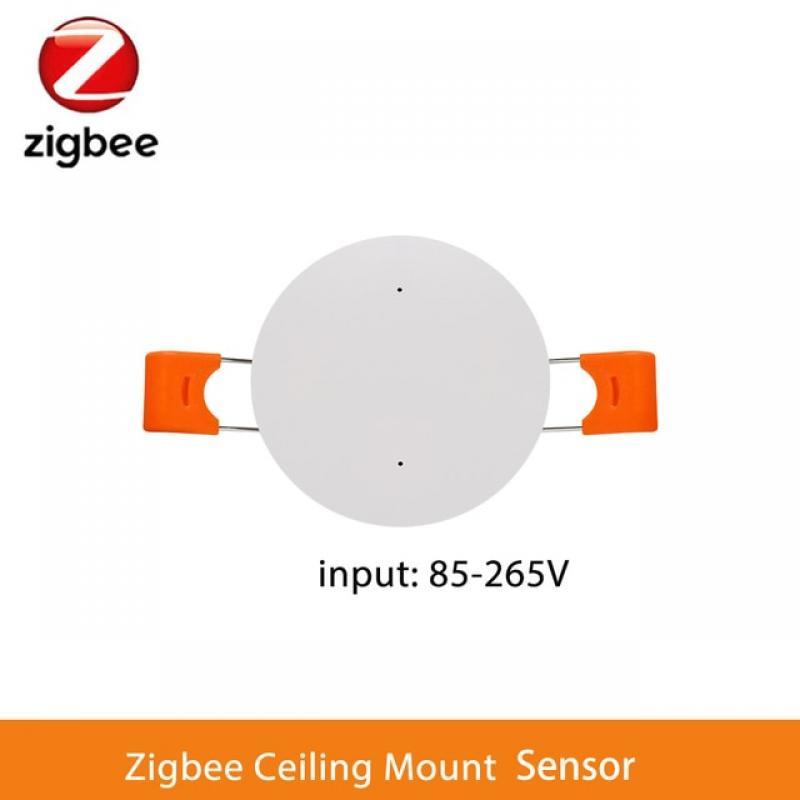

The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. Advanced New Design with Multiple Settings
Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.
5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)
Specifications:
Network: ZigBee / Wifi.
Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V.
Working temperature: -20℃~+70℃
Sensitivity: 1-9(default 7)
Wall mount sensor sensing distance: 0.3-9m(Default 6m).
Celling mount sensor sensing radius: 0-7m(Default 5m).
Illuminance Sensor: 0-2000 LUX.
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s.
Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm
Wall Mount Size: 58mm*58mm*11mm
Package list:
Human presence sensor*1
User manual*1
USB Cable*1(Wall Mount)
