Model Number:Human presence sensor
Origin:Mainland China
Certification:CE
Smart home platform:Tuya
Wireless technology:ZigBee/Wifi
Working voltage:DC80-250V
Working current:≤70mA
Working temperature:-20℃~+70℃
Sensitivity:0-9(default 7)
Detect distance:0.3-9m(default 6m)
Light sense:0-2000Lux
Installation mode:ceiling
Zigbee version:zigbee version need tuya zigbee hub to operate
Note:There are two versions
Wifi version doesn't need tuya zigbee hub to operate.
zigbee version need TUYA Zigbee Hub to operate.
Adapter are not included,User can wire with power source directly
.
Working voltage:AC80-220V
The
Micro motion sensor can be widely used in lighing,security,home
appliance.hotels,garages,buildings.transportation.LOT internet of things
and other industries that need to detect human micro motion,motion and
control detection distance
Smart
Human Presence Detector:the human presence sensor adopts millimeter
wave radar,sensing human movement and static presence.It can detect the
tiniest movement,even breathing and heatbeat.
Home
Security :With human presence detection,you can used to detect
intruders,whether it's in your personal home,an office or retail setting
or even an industrial environment.
Energy
Conservation:It can not only be used to detect moving,but also
non-moving people.it enables seamless background features,like the
litchen light turns on once you enter the room and off once you leave.
APP
Remote Control:It detect micro/macro motions enables you to detect
human presence within a configured distance.and get alerts in real time
via app.
History Record View:User can check the history record via app.
ZigBee
Hub needed:Tuya ZigBee gateway is required for this ZigBee human
presence sensor,performing as the center bridge for all Tuya ZigBee
smart devices with extremely stable signal and a really good necessity
for whole-house intelligence.
Specifications:
Product name:Human presence sensor
Wireless technology:ZigBee/Wifi
Working voltage:

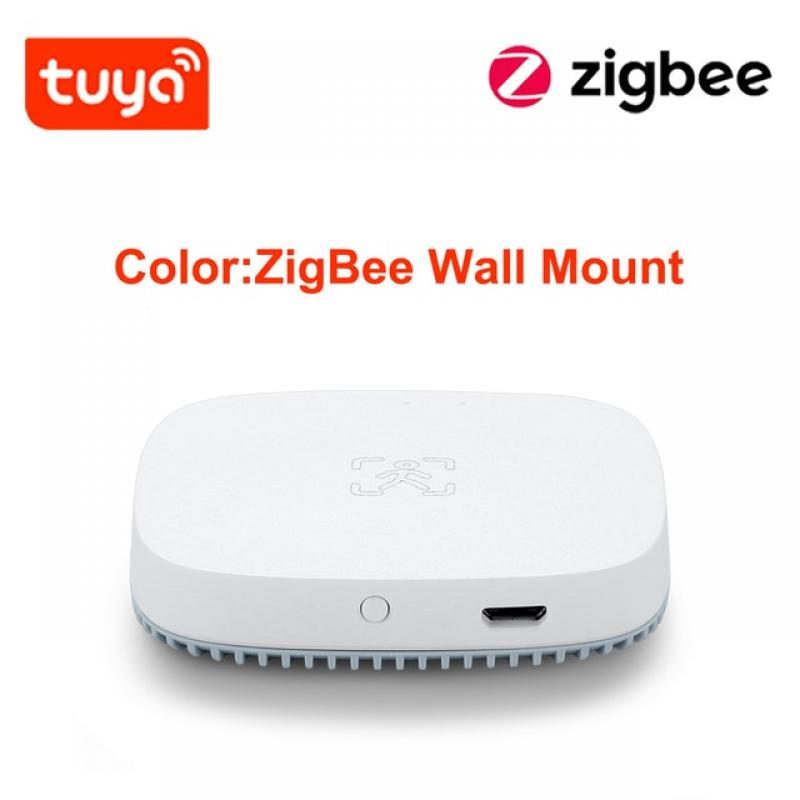

Wall mount version:Powered by USB 5V
Working current:≤70mA
Working temperature:-20℃~+70℃
Sensitivity:0-9(default 7)
Detect distance:0.3-9m(default 6m)
Delay time:1.target detection confirmation time:0-10s
2.target disappearance delay time:0.5s-25min.
It is recommended not to be less than 15s.It is too short to miss the human motion.
Light sense:0-2000Lux
Installation mode:ceiling/wall
Package list:
Human presence sensor*1
User manual*1
USB Cable*1(Wall Mount)
