Detection Angle:120°
Detection Range:7-10m
Model Number:Tuya Zigbee/Wifi human presence sensor
Origin:Mainland China
Certification:FCC,RoHS,UL
Network: ZigBee / Wifi.
Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V.
Working temperature: -20℃~+70℃
Sensitivity: 1-9(default 7)
Wall mount sensor sensing distance: 0.3-9m(Default 6m).
Celling mount sensor sensing radius: 0-7m(Default 5m).
Illuminance Sensor: 0-2000 LUX.
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s.

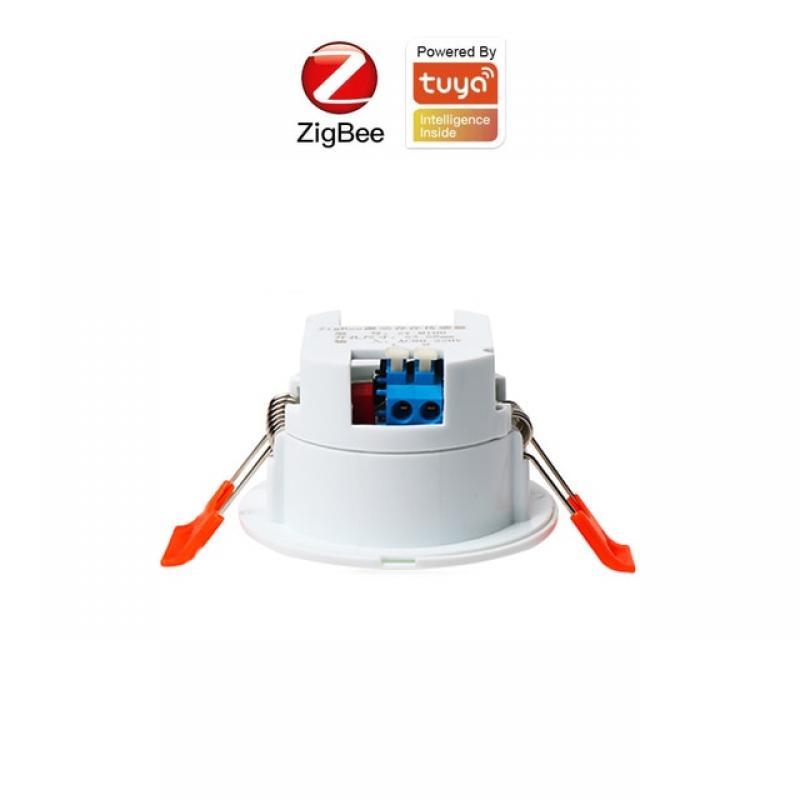

Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm
Wall Mount Size: 58mm*58mm*11mm
Package include:
1pcs sensor ;
1pcs user manual;
1pcs usb cable;
1.【Functional ZigBee / wifi Smart Human Presence Sensor】
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. 【Perceived Light Intensity for Smart&Scene Linkage】
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.
3.【Flexible in use】
The wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. 【Advanced New Design with Multiple Settings】
Set the sensitivity from 1-6 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.
5. 【ZigBee Hub as Control Center】
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)
6.【Functions And Features】
Illuminance detection
Various Detection Functions
(Fretting Detection/ Presence Detection/Motion Detection/Distance measurement)
Detection distance setting
Adjustable Parameters
Large area inspection
Sensor parameter setting
Linkage settings
Frequently Asked Questions
Q1. People are turning off the lights. There is a linkage light of the device, but the light that the person is still in the detection area is off, and the linkage light only comes on when the human body moves slightly.
Answer: please adjust the sensitivity +1. If the sensitivity is too low, accurate breathing status cannot be obtained.
Q2. No light is on. When someone is in the state, after the person leaves, the light is still on.
Answer:
1: The unmanned delay time is appropriately adjusted downward,
and adjusted to 10s for short-term debugging. Then revert back to normal
use time.
2: After 10s unmanned delay setting, adjust the sensitivity to
-1. Decrease the sensitivity one by one until the light goes out after the person leaves.
