Model Number:L6
Focal Length:Non-adjustable
Light Source:LED Bulbs
Wattage:40W
Body Material:Aluminum Alloy
Certification:NONE
Zoom:No
Model of LED Beads:XHP70
Waterproof:Yes
Lumen:3800
Support Dimmer:5-8 files
Lighting Distance:200-500 m
Origin:Mainland China
OP = orange peel reflector
SMO = smooth reflector

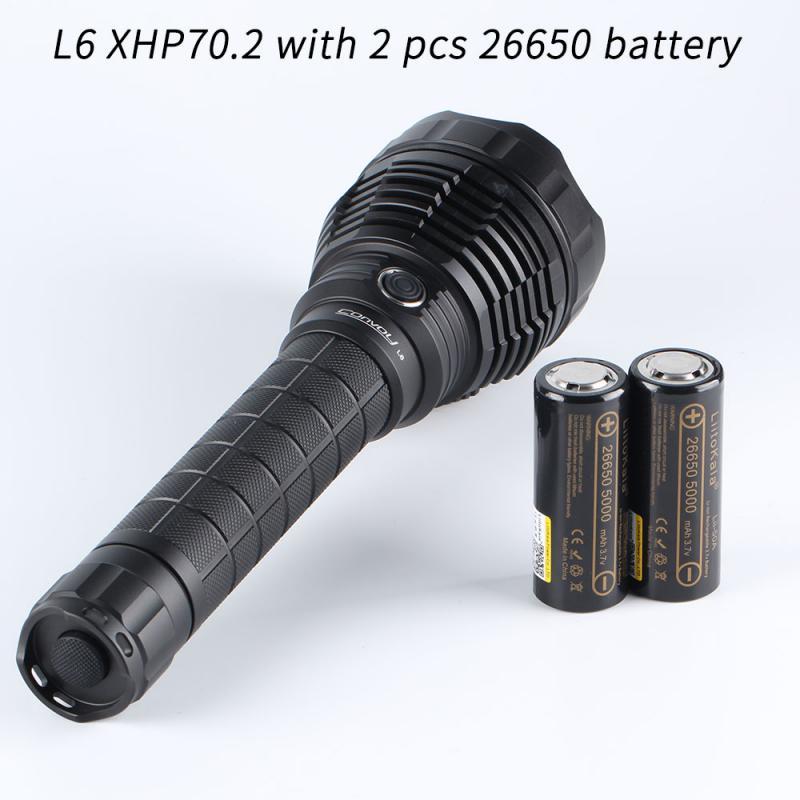

Notice that Convoy L6 must run on 2pcs protected
26650 batteries which can w
ithstand more than 6A
current.I recommend protected keeppower 26650 5200mAH battery. (length of battery can not be more than 70mm . Pls use new version protected keeppower 26650,its length is 69mm)
Notice that never turn on the turbo mode all the time ,otherwise the temperature of flashlight can be up to 80-90 centigrade,you may be
scalded!!!
[Specification]
Host
:
Blac
k
/ integrated head
Mode:
1%-10%-40%-100%,
(Double click side switch ----> strobe)
Switch:
125V 10A forward switch in tail controls on/off, side switch controls the mode
Reflector:
OP/SMO & Aluminum Alloy, maximum diameter 67.8mm, hight 48.2mm
LED:
CREE XHP70.2 XHP70.3 soldered on 20mm copper plate,
Flux:
XHP70.2 4300LM, XHP70.3 HI 5200LM, SST70 3500LM
Outpur current:
XHP70.2 / SST70 5A, XHP70.3 HI 8A
Waterproof level:
IPX6
Battery
:
include 2pcs liitokala 26650 5000mAh batteries or 2pcs keeppower 26650 5500mAh batteries
Head diameter:
75mm
Outer d
iameter of battery tube
:
35mm
Inner diameter of the battery tube
:
27mm
Flashlight length:
255mm
Light weight:
550g
Packaging weight:
761g (battery not included)
