Size:25*25*25CM
Fiber Type:Single Mode
Compatible:D-Link
Connector Type:Hybrid
Item Length:1m
Model Number:GX39
Origin:Mainland China
Certification:CE
Typical splicing time::9 seconds
Tube typical heating time::20 seconds
Type::mplicador de fusao de fibra optica
Warranty::3 Years
Electrode life::4000 splices
Alignment::Core-Core & Clad - Clad Alignement
Equal to::Fujikura fsm70s fiber splicing machine
Splicing loss::0.02dB
Languages::10
Name::Optical Fiber Fusion Splicer
Fiber Optic Cleaver KF-52::48,000 Cleaves
Fiber Optic Sleeves::60mm for 100 pieces
Fiber Optic Extra Electrodes::For free

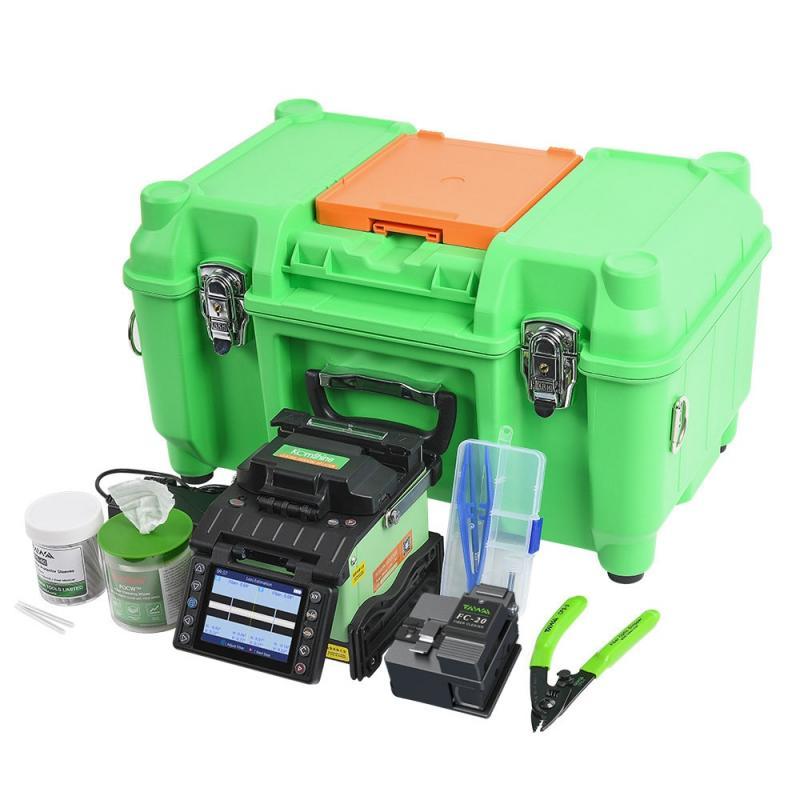

Komshine GX39 Fiber Optic Fusion Splicer
Descriptions:
Komshine GX39 FTTH optical fiber fusion splicer is widely used in industries such as fiber-to-the-home, fiber-optic cable rapid termination, machine room jump fibers remediation and so on. Its newest all-in-one fixture design can splicing various optical fibers. The machine has automatic, manual, and semi-automatic functions to choose. At the same time, the machine small in size;light weight;anti-shock and drop resistance; the volume is 40% smaller than the traditional welding machine and the weight is only 1.77KG. 5200mAh large-capacity lithium battery, which can be connected and heated more than 350 times after being fully charged.
Key Specifications:
1.  Fast-splicing: 9S  Fast-heating: 20s
2.  3000 Times Electrode Service life
3.  Average Loss under 0.01dB
4.  5200mAh Battery Capacity. Circular Welding 350 times
5.  3.5Inch 800 x 480 HD LCD Screen
6.  Real Time Discharge Correction. Stable Fiber Splicing
Specification:
