Output Power(w):3w-5w
Battery Capacity(mAh):2000
Waterproof / Water-Resistant:No
Material:ABS+PC
Storage Channel:3000
Frequency Range:VHF:136-174MHz & UHF:400-480MHz
Dimensions:131x61x36mm
Model Number:RT3S
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:3km-5km
Origin:Mainland China
Certification:FCC
Radio ID:4
Color code:0-15
Repeater Slot:Dual time slot, 1/2
Contacts:120000
Weight:258g (with battery)
Vocoder:AMBE+2TM
Power:High<=5W, Low<=1W
Speaker mic/Headset/Programming Port:Two-pin K plug
Antennna type:SMA-M
Charger type:EU/US/UK/AU charger optional
VOX sensitivity:1-10
Mic Gain level:1-6
Button definable:Yes, can define short press and long press function
Encryption Setting:None/Basic/Enhanced
Call type:Private Call/Group Call/All Call
Squelch:1-9
Support DTMF Signaling:Yes
Support GPS:Yes
Antenna Connector:SMA-M
Audio Connector:Compatible with Kenwood 2Pin
Usable programming cable:J9110P

Choose According to Your Using Need：

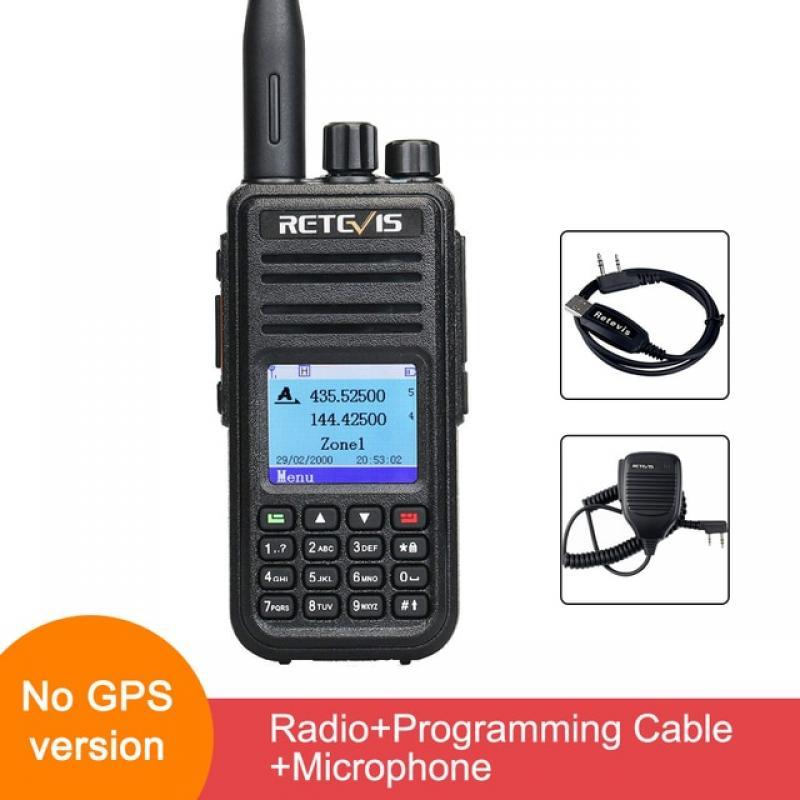

1.Retevis RT3S has two versions:No GPS version and with GPS version. When you purchase,please notice the difference.
2. If you need a programming cable,please choose the options "with Cable" or "with Acces",a programming cable will be included in the package.
The options "No GPS Only Radio" and "GPS Only Radio" are without a programming cable. Please attention.
3. In order to meet the requirement of frequency rules and regulations in USA,etc countries, the frquency of new RT3s with US standard charger will be locked within 150 - 160 mhz and 450 - 460 mhz in factory, so it cannot communicate directly with RT3s of EU standard charger.
Please operate like this to unlock its frequency into normal :Press two side keys at the same time and at first turn off it ,and then turn on it, it will work.
RT3s with EU standard charger is not influenced and don't need unlock frequnecy.
With Retevis RT3S Entering DMR Digital Walkie Talkies Era
More Popular Among Radio Communication Hams
We promise excellent quality,better after-sale service to every customer friend,winning more good ratings and confidence support!
Dual Band
•
Dual Display
•
Dual Standby
•
Dual Mode
One Machine for Dual Use.
Analog mode and digital mode combined in RT3S,can communicate with analog radio or digital radio,saving cost.
Large Color LCD Display
•
Y
ou can easily read the channel/zone/time/power/function prompt/menu and so on.
Be visible, so more convenient.
TDMA Technology
•
I
n a TDMA system,while voice is using the first time slot,then the second time-slot canbe used for transmitting application data,such as text messaging or location data in parallel. Useful especially in dispatch systems that provide both verbal and visual dispatch instructions.
•
And,
RT3S not only supports dual time slot for repeater,but also supports dual time slot for point to point.
•
Dual capacity direct mode (DCDM) enables a single 12.5kHz channel to support two simultaneous and independent calls.
Support Manually Frequency Editing and Channel Add
In VFO mode, you can manually input frequency, select contacts, color code, time slot, etc., and manually add channels in MR/CH mode.
Upload DMR Contacts Database Function
•
The function can help import or export contacts data(*csv) in bulk.
•
Note:Before uploading,make sure your RT3S has updated CSV firmware already.
•
If you need database,please visit:
http://www.amateurradio.digital/
Private Call
•
Group Call
•
All Call
Group Call Match
•
Group Call Match in RT3S but in other walkie talkies such as Ailunce HD1 it is called Promiscuous.
•
Using this function,there is no need to preset and verify group call contacts to realize a call.
GPS Function (Optional)
•
RT3S has two versions: common version, GPS version. When you make a order,please note it.
•
GPS function shows more positioning information,such as lat long,altitude,bearing,etc.
•
You can set GPS Report Interval to send GPS info at the pre-set interval.
APRS Function（Only available in RT3S with GPS ）
•
APRS function need to realize with GPS function, and by virtue of hot-spot tool to ensuring normal work
•
APRS (Automatic Packet Report System),to realize automatic report positioning,tracking
Text Message
•
Support a maximum length of
144
characters.
•
Support maximum
50
programming of prefabricated text messages.
•
Support up to
50
recently sent text messages,old message will be replaced when no place to store.
Digital Encryption
•
Using advanced digital voice encryption technology,in the form of numbers,to avoid frequency or channel cross and unauthorized interference or eavesdropping.
•
Support 16 groups of 4-bit Basic Key Value , 8 groups of 32-bit Enhanced Key Value on CPS software.
•
Compatible with RT3,RT8,RT82,RT90 DMR radios encryption.
Up to 8 Hours of Recording
•
Recording function is only available in digital mode.
•
Be able to record for more than 8 hours when it’s 3000 channels and 10000 contacts.
•
Each digital call will be recorded and stored in Call Log submenu when function is on.
•
Recordings can be checked and playbacked.
VOX Function
•
RT3S has the voice prompt function,but RT3 not.
•
RT3S also has VOX hands-free function,CTCSS/DCS code,Scan,TOT and record functions.
Provide Better After-sale Service For Every Friend
•
Retevis has been dedicated to improving quality,providing better after-sale service,and strengthening technical support.
•
We provide software downloading and firmware upgrade service.If you need,please contact us.
Application
Notice
: We will send you the right charger according to your country.
Main Feature:
Use time-division multiple-Access(TDMA) digital technology
Dual time slot for repeater
Dual time slot for point to point
Firmware upgradeable
Lone worker
Encryption function
Single call,group call and all call
Analog and digital combiend
Remote kill /stun and activate
Up to 3000 channels
Transmit interruption
Group call match(promiscuous)
Private call match(promiscuous)
Record
Emergency Alarm
Voice Announcement
VOX
TOT
Specifications:
FAQ:
Question 1:   It is with GPS?
Answer: RETEVIS RT3S has two models,with GPS or without GPS,you can choose what you want.
Question 2:   Does RETEVIS RT3S has the Promiscuous function?
Answer: Yes,it does,in RT3S,it is called Group call match or Private call match.It has the ability to you listen to all groups.
Question 3:   Hello,whether encryption?
Answer: Yes,and its encryption is compatible with RETEVIS RT3/RT8/RT82/RT90.
Question 4:   Apology,this radio works with Tier II？
Answer:
Yes,RT3S is  one true dual time slot DMR radio,and it is compatible with DMR radios.
Question 5:   Why RT3 is more expensive than RT3S?
Answer:
They have the different chip,RT3 is superheterodyne,RT3S is RDA.
Question 6:   With the radio there is a wire for programming?
Answer: Now we set six different packages,the first two package do not include the programming cable,others include the cable. And then you can download the driver and software from RETEVIS official website.
Question 7:   Channels tied only to zones or there is no zones?
Answer: RT3S has many zones,and you can add the channel into the zone.
Question 8:  This support SMS ? and compatible with digital or other ht ?
Answer: Yes,RT3S support SMS short message, but the SMS function is not compatible with digital or other ht. Because each manufacturer has different solutions regarding SMS, so they are not compatible.
Question 9:   RT3S radio working on RDA chip？
Answer: Yes.
Question 10:   Has FM radio?
Answer: No,it does not support commercial FM radio.
Question 11:   How to reset RT3S radio?
Answer: pls contact the customer service,she will provide you thr original codeplug,thrn you read it into your software and write it into your radio.
Question 12:   Can I programmed the radio manually?
Answer: Yes.First enter into the VFO mode,then you can edit the frequency and other setting by keyboard.
Question 13:   Is there a roaming function? what encryption(how many bits)?
Answer: No,not support roaming function.But it  support encryption,4-bit basic password or 32-bit enhanced password.
Question 14:   does the walkie-talkie scan all the channels?
Answer: No,you can add the channels into the scanlist,then scan thescanlist.
Question 15:   This radio is compatible with P25?
Answer: No,it is compatible with DMR radio
Question 16:   How to translate analogue to digital not connecting to a computer ??
Answer:No way. You should define the channel mode through the software.
Question 17:   APRS is compatible?
Answer: Yes. Now RT3S is compatible with APRS.
Question 18:   can we pair this device with baofeng 888s/UV-5R/UV-8S/UV-9R?
Answer: Yes, can in analog mode.
Question 19: Why sometimes RT3S can't talk normally when connected to the repeater?
Answer: In the digital channel, when the transmitting frequency and the receiving frequency are inconsistent, the default is the relay mode. In relay mode,
ID 9990
is not available.
Question 20:How to enter into VFO mode of Retevis RT3s?
Answer: Two way to enter into VFO mode，by software or keyboard.
1.Open the software and click on “General Setting”,
2.switch”Freq/Channel Mode” to ”Freq”, ”Model Select A” “Model Select B” to “VFO” ,
3.Click on left”VFO Mode”,define the channel mode of row A and row B separately.
4.Turn on RT3S and connect to software.
5.Click to “Program” “Write data”, Waiting to prompt programmed successfully.
6.Disconnect RT3S , notice “V” in the right of screen.
Manually switch to VFO mode by keyboard
1. Click on “Menu” to enter,
2.Select in turn: Utilities>>Radio Settings>>Mode>>MR Mode
3.Back to main interface, notice now is in MR Mode
4.Long press Red Key switch to VFO mode ,“V” icon appear
5.Repeat the operation to make row B also enter VFO mode
6.Long press Red Key again switch to MR mode
7.Click on “Menu” to enter, Select in turn: Utilities>>Radio Settings>>Mode>>CH Mode
8.Press Red key to back to main interface,RT3S is in Channel Mode.
Question 21:How to solve the problem of abnormal frequency display?
Answer:1. First turn off the radio
2.Simultaneously press and hold the two side keys to turn on the radio
3.Now it's normal.
Question 22:What can I do if the frequency of my new RT3s of USA standard charger is limited within 150 - 160 mhz and 450 - 460 mhz?
Answer: What can I do if the frequency of my new RT3s of USA standard charger is limited within 150 - 160 mhz and 450 - 460 mhz?
Don't worry, in order to meet the requirement of frequency rules and regulations in USA,etc countries, the frquency of new RT3s with US standard charger will be locked within 150 - 160 mhz and 450 - 460 mhz in factory, so it cannot communicate directly with RT3s of EU standard charger.
Please operate like this to unlock its frequency into normal :
Press two side keys at the same time and at first turn off it ,and then turn on it, it will work.
