Output Power(w):5w-10w
Battery Capacity(mAh):1800mAh
Waterproof / Water-Resistant:No
Material:Plastic
Storage Channel:128
Frequency Range:VHF 136~174MHz UHF 400~520MHz
Dimensions:230*58*32mm
Model Number:UV-5R
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:3km-5km
Origin:Mainland China
Certification:CE,FCC
FM:65.0MHz-108.0MHz
Weight:200g(including battery, antenna)
Antenna:SMA -Female
BaoFeng UV-5R Walkie Talkie Dualband Two Way Radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver With Earpiece
Main Feature :
Dual Band, Dual Display, Dual Frequency,Dual Standby
A/B band independent operation
50 CTCSS and 104 CDCSS
Buit-in Vox Function
0~9 grades VOX selectable
1750Hz Brust Tone
FM Radio(65.0MHz-108.0MHz)
LED Flashlight
Larger LCD Display
Tri-color background light selectable
VFO & Memory channels scan
High/Low RF Power Switchable
25KHz/12.5KHz Switchtable
Busy channel lock-out(BCLO)
Voice companding
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step:2.5/5/6.25/10/12.5/25KHz
PC Programming
Clear Sound Support FM Radio (receiving 65-108MHz)
Long Range Communication：
Talking Coverage depends on environments,TX power,and battery power.
1800mAh Rechargable Li-ion Battery：
Automatic power saving function to extend battery life.
Compact and Portable
Size(with battery, but without antenna):110×58×32mm , Weight (including antenna and battery):200g
Multiple Accessories
Specifications :
Frequency Range : 136-174MHz & 400-520MHz
Number of Channels : 128
Operated Voltage : DC 7.4V
Battery capacity : 1800m Ah (Li-ion Battery)
Dimension：110 x 58 x 32 mm
Weight：200g(including battery, antenna)
Frequency Stability：±2.5ppm
Antenna：High gain DualBand antenna
Antenna Impedance：50Ω
Mode of operation ：Simple or semi-duplex
Antenna : SMA -Female
Earpiece / mic type : Kenwood Plug type
Transmitter
Output power：8W / 5W /1W (Max 8
W)
Modulation Mode：16kΦF3E / 11kΦF3E
Maximum deviation：5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation：7μW
Adjacent Ch. Power：≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics：6dB
Current：≤1.6A(5W)
CTCSS/DCS deviation：0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity：8-12mv
Intermediation distortion：≤10%

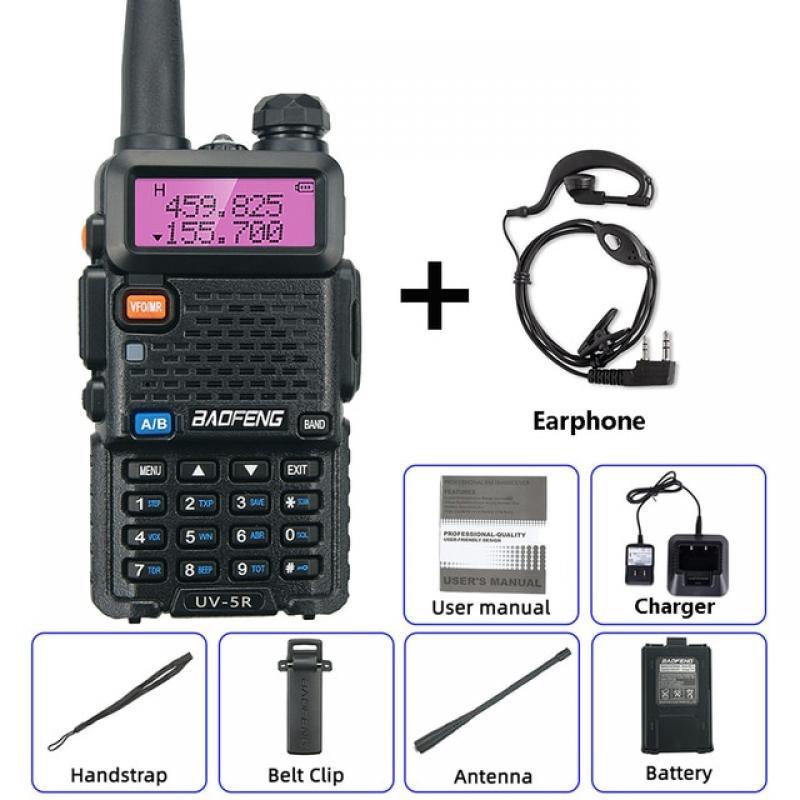

Standard Package Includes：
1 x UV-5R Radio
1 x 1800mah Li-ion Battery
1 x Antenna
1 x Belt Clip
1 x Lanyard
1 x User Manual
1 x Charger
1 x Earphone
If you buy other accesorries listed in the picture, we will send accordingly.
