RAID Supported:No
Processor compatibility:Intel Xeon E Series
Usage Scenario:Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Industrial Computer,Workstation,Server,MINI PC,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,Others,HPC
Special Function:NONE
Onboard Connectors & Header:24-pin Main Power Connector,AAFP Connector,4-pin +12V Power Connector,USB 3.0 Connector,8-pin +12V Power Connector,USB 2.0 Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Back I/O Ports:1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2
Support USB Type:USB 2.0
Max LAN Speed:1000Mbps
Onboard LAN:1x RJ45
Number of M.2:2
Storage Interface Type:SATA,SATA 3,M.2 (NVMe),M.2(SATA)
Number of PCI:2
Number of PCIe x 1:1
Number of PCIe x 4:0
Number of PCIe x 8:0
Number of PCIe x 16:1
PCI - E standards:PCI - E 2.0
Number Of Memory Slots:4
Support Memory Type:DDR4
Memory channel:Four
Package:Yes
Launch Date:2013
Maximum Ram Capacity:128 GB
Form Factor:FLAX ATX
Chipset Manufacturer:Intel
With CPU:Yes
Chipset:Intel Others
Application:Workstation,Mining
Socket Type:LGA 2011-3
Origin:Mainland China
Feature:
support SATA M.2 and M.2 NVME
Supports DDR4 ECC server memory and DDR4 desktop memory
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.

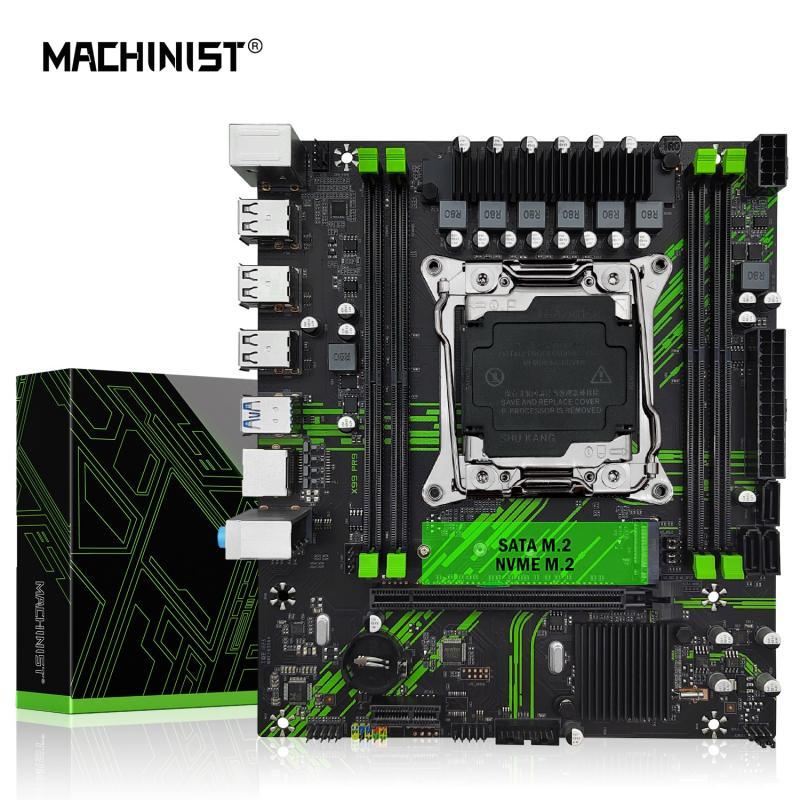

Specification:
Chipset: B85/Q85
Model: MACHINIST
CPU socket: LGA 2011-3
Structure: FlexATX 215mm*185mm
CPU supported: Intel Series With LGA 2011-3 Socket(Support Intel Core i7 or xeon e5 v3&v4 series)
Memory socket: 4*DDR4 Support Four Channels
Max memory supported: 4*32GB DDR4
Memory type supported: 2133/2400/2666/3000/3200/3600mhz(The Server Ram Can't Work With The Desktop Ram, it Has The Compability Problem.)
Motherboard dimension: 21.5CM*18.5CM
Motherboard weight(including package): 0.8kg or so
Note:
1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform. (at least 500w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
