Model Number:87HA13AC1302267
Item Type:Motherboard
Origin:Mainland China
Features:
Brand new and high quality

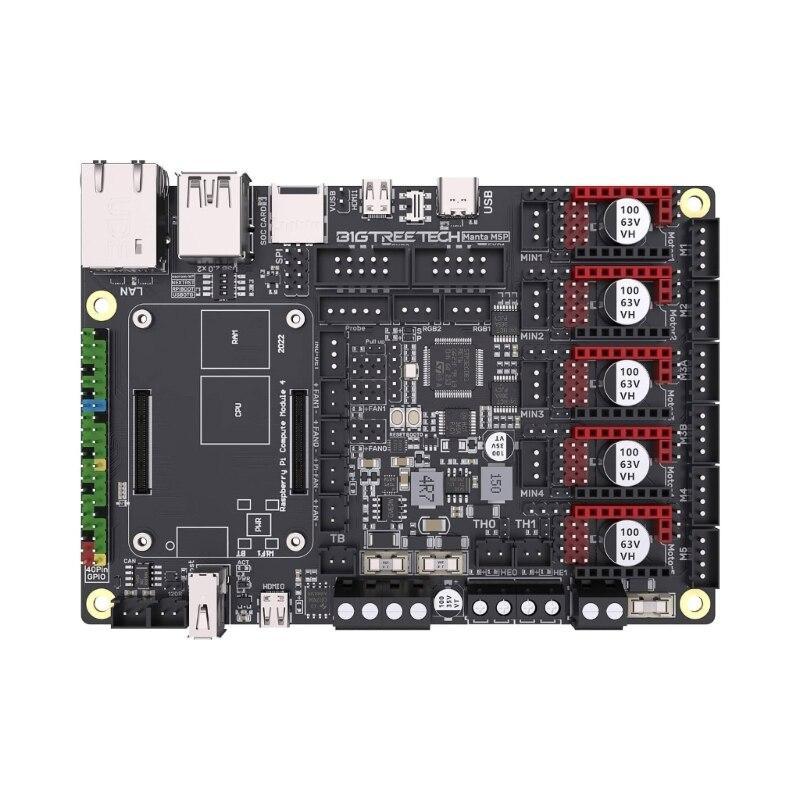

Manta M5P V1.0 Control board are born for Klipper running,designed with the same connector.Giving you a confident connection with all version of,and defintely CB1. a screw forced installation is available too.
Matan M5P adopts 32Bit 64MHZ ARM Cortex-M0+Series-STM32G0B1RET6 chip, can also run without CB1.Support 5-axis stepper motor driver,Integrated UART modes of driver, easily configurable.
Supports CAN Bus/Filaments runout sensor, Onboards interface port for connecting acceleration sensor to enable Klipper input shapings.
The new E-FUSE is equipped, which can respond quickly, enhance self-protection ability, and greatly reduce the motherboards burnout caused by short circuits.
Main board reserves switches interface expansion interface, supports selection, (24,12V, 5V) selection and for users use Klipper firmware to connect external acceleration sensor for acceleration compensation.
Specifications:
Material:Plastic
Size:Approx.137.5x95mm/5.41x3.74inches
Package Includes:
1x Control Board
Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
