Model Number:KA300
Certification:CE,RoHS
Origin:Mainland China
Resolution:5um / 0.005mm
Voltage:5V
Output signal:TTL / RS422 (option cost extra)
Cable length:3 meter
Country of orginal:China
Accuracy:+-3 to 6um

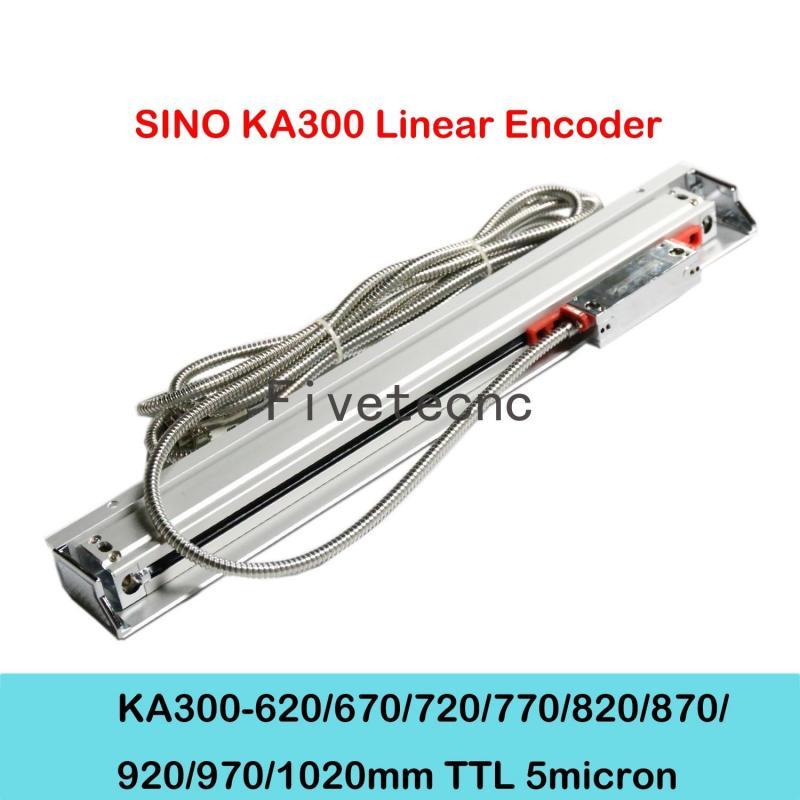

Sino KA300 5micron TTL 620 670 670 720 770 820 870 920 970 1020mm Linear Scale Encoder for Milling Lathe Machine
For EU countries buyers, we ship from one of the warehouse at Poland/France/CZ/Spain, it depends on buyers location and our inventory.
Package include:
KA300 Linear scale 1 piece,
Scale cover x 1 piece ,
Screws x 2 bags
Notes:You will get the scale which you choose to pay for, it is working length instead of total length.
Purchase reading:
1. The scale is working length at the listing, e.g, if you choose KA300-620mm, the total length are 726mm, hoping you can know that.
2. The price is not included tax fee/ tariff , please note that.
3. If need other working length, please find it at our store by other link, or please contact seller to send you a correct to pay it.
SINO KA300 Linear Scale/SINO KA300 Linear Encoder Parameter
1. Travel (measuring) length: 620-1020mm
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.005mm (5um/5micron)
5. Output signal: TTL signal
6. Input voltage: 5V
7. Grating pitch: 0.02mm (50LP/min)
8. Cable length: 3 Meter / 118 inch
9. Scale width*height size: 21*34mm
10. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure,the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm.
11. Moving speed: high speed ruler 120 m/min(customize), Ordinary ruler 60m/min
12. Power supply: +5V + 5%, 80mA
13. Working temperature: 0~45 degree
