Usage Scenario:Mining
Special Function:NONE
Back I/O Ports:VGA(D-Sub),8 x USB 2.0
Onboard LAN:1x RJ45
Storage Interface Type:SATA
Number of PCI:0
PCI - E standards:PCI - E 2.0
Support Memory Type:DDR3
Package:Yes
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
With CPU:Yes
Chipset:Intel B75
Application:Mining
Socket Type:LGA 1155
Origin:Mainland China
Certification:CE
Model Number:B75 BTC Mining Motherboard

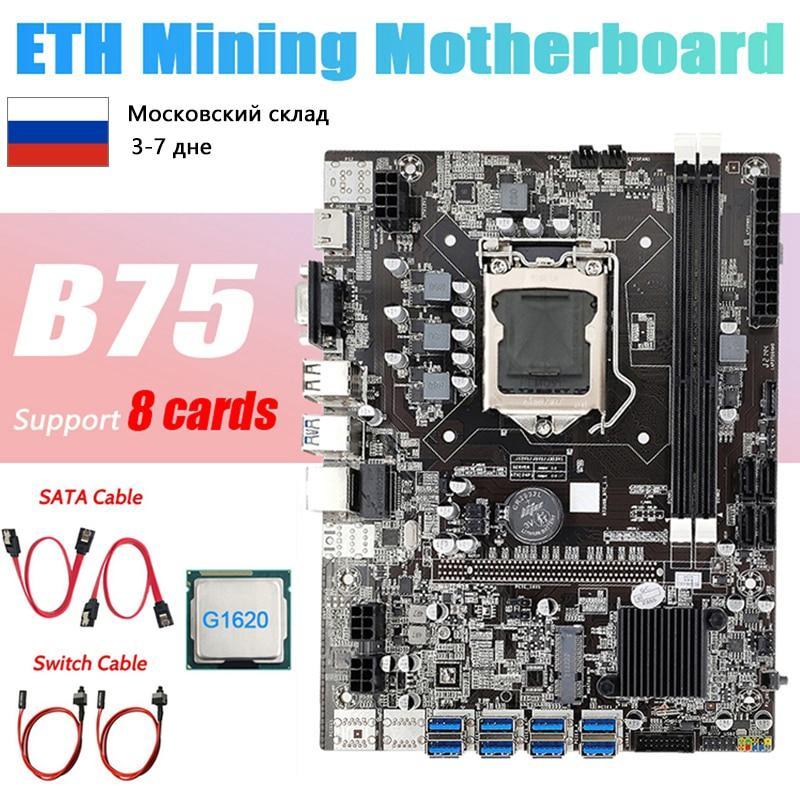

B75 8 USB ETH Mining Motherboard 8 PCIE 12 To USB With CPU Support LGA1155 MSATA VGA 2XDDR3 RAM 16GB Memory Capacity Components
Description:
The B75 USB-BTC motherboard uses all-solid capacitors to make the motherboard more stable; it supports LGA1155 CPU and uses the B75 chipset to give full play to the CPU performance; the motherboard is suitable for the mining industry due to its low price and rich expansion interfaces.
(1) Display interface: 1*HDMI-compatible, 1*VGA
(2) USB rear: 2*USB2.0
(3) USB front: 1*USB2.0
(4) USB rear: 2*USB3.0
(5) USB front: 1*USB3.0
(6) Hard disk interface: 4*SATA
(7) Graphics interface: 8*PCIE1X (USB transfer)
(8) Network card interface: 1*LAN 100M network card
(9) Memory slot: 2*DDR3
(10) CPU socket: LGA (1155)
(11) Chipset: BGA (B75)
(12) Hard disk interface: 1*MSATA
(13) BIOS initial restoration: JCMOS
(14) Speaker interface: 1SPK
(15) Power interface: 24pin_ATXPWR
(16) Power interface: 4pin_ATX12V
Specifications:
CPU type: Support For Intel 1155
CPU socket: LGA_1155
Memory type: support 2*DDR3
Maximum memory capacity: support a total of 16G, a single maximum of 8G
Memory description: support 1333/1600MHz frequency
Chipset: For Intel B75 Express Chipset
Audio chip: N/A
Network card chip: 1*REALTEK 100M network card
The appearance, color and material of different batches of products may be different, which will not affect the function. Please feel free to use it.
Package Included:
1*Motherboard
1*CPU
2*SATA Cable(Random Color and appearance )
2*Switch Cable(random color)
NOTE:
the cpu model is random, but does not affect usage, and the performance is consistent
