RAID Supported:No
Processor compatibility:Intel Xeon,Intel Xeon Scalable,Intel Core
Usage Scenario:Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Others
Special Function:NONE
Onboard Connectors & Header:24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
Back I/O Ports:1x RJ45
Onboard LAN:1x RJ45
Audio Channels:2.1
SATA RAID:0
Supports M.2 SSD:2280
Number of M.2:1
Number of SATA Ports:4
Storage Interface Type:SATA,M.2 (NVMe)
Number of PCI:0
Number of PCIe x 1:1
Number of PCIe x 4:0
Number of PCIe x 16:1
PCI - E standards:PCI - E 2.0
Number Of Memory Slots:4
Support Memory Type:DDR3
Quality Certification:ce,ROHS
Memory channel:Double
Form Factor:CeB
Package:Yes
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
With CPU:No
Chipset:Intel X79
Application:Desktop
Socket Type:LGA 2011
Origin:Mainland China
Certification:RoHS,CE
>> What's in the package?

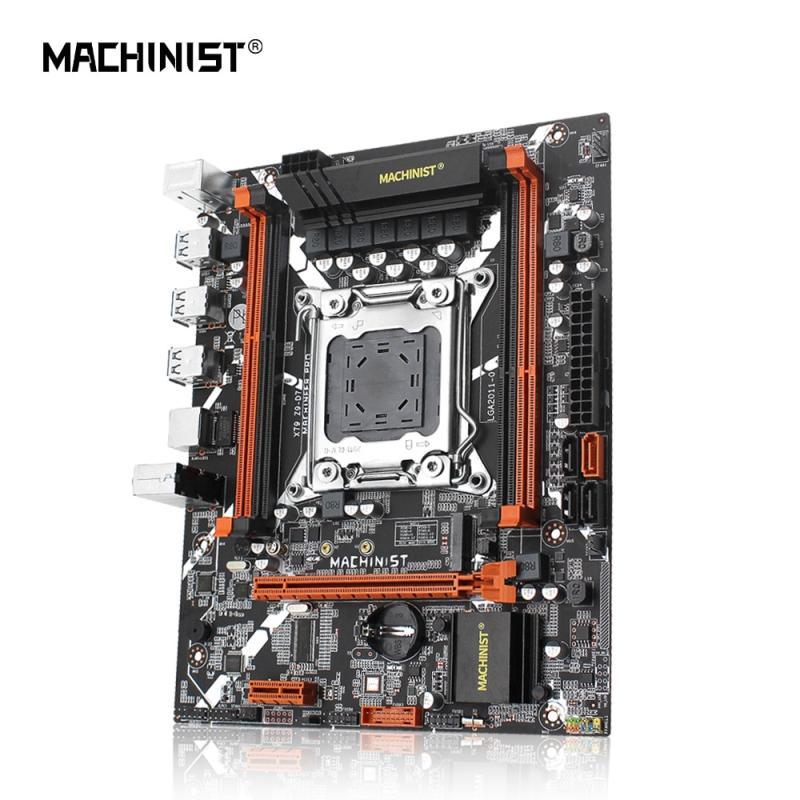

#Main products: MACHINIST X79 Z9-D7 motherboard *1;
#Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);
>>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.
Brand: MACHINIST,
CPU socket: LGA 2011,
Motherboard model: X79 Z9-D7,
Structure: M-ATX,
Chipset:Intel X79,
Memory slot: 4*DDR3,
Maximum memory supported: 4*16GB DDR3,
Supported memory types: The memory types support DDR3 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible),
LAN port: 10/100/1000Mbps/s,
Video output port: requires graphics card support,
Interface: 1*RJ45/1*PS2/4*SATA2.0/6*USB2.0//1*PCI-E ,x16/1*PCI-E x1/1*NVME/NGFF M.2 interface,
Motherboard size: 235*185mm,
Motherboard weight (including packaging): about 0.85kg.
Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
